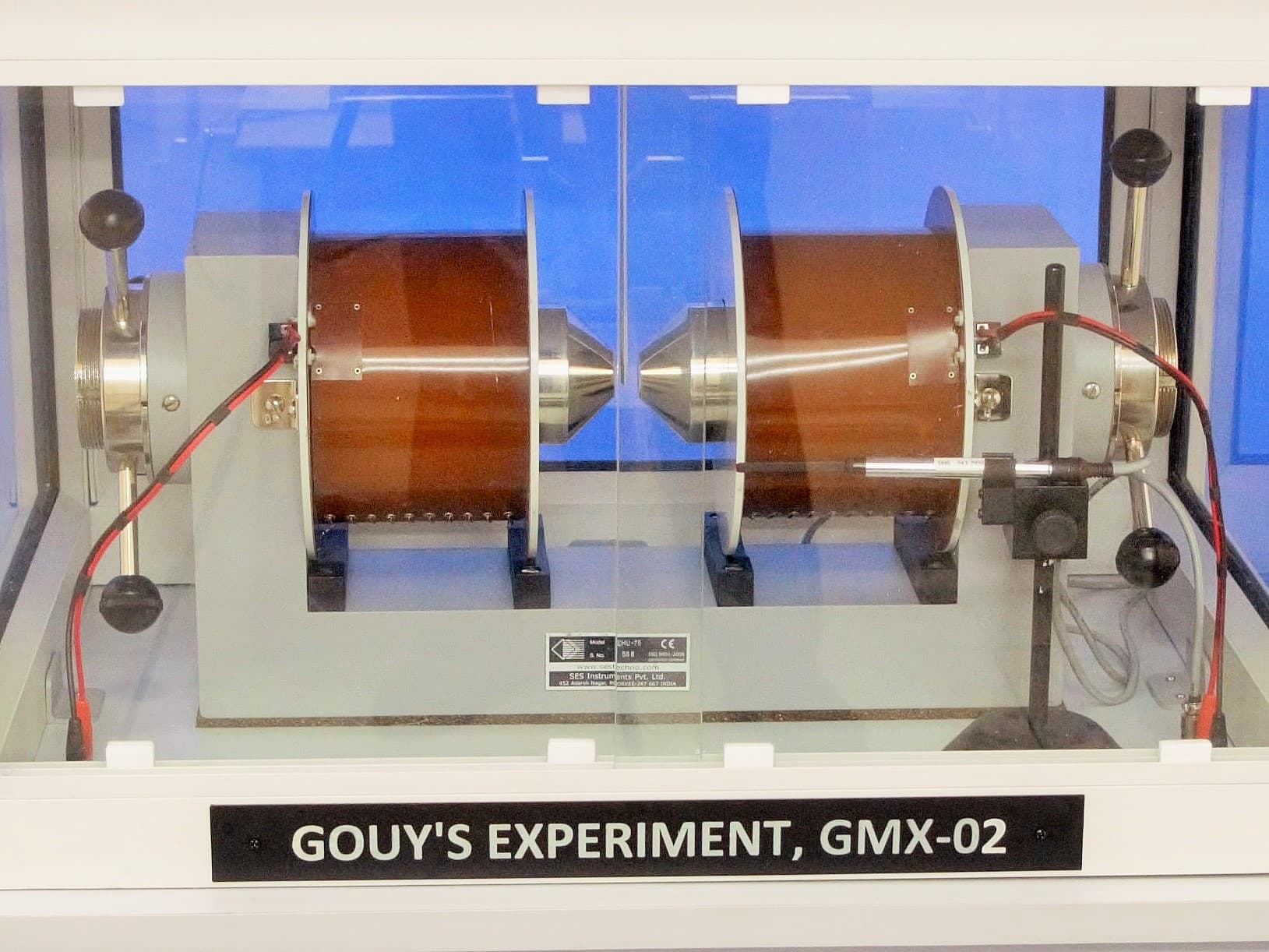

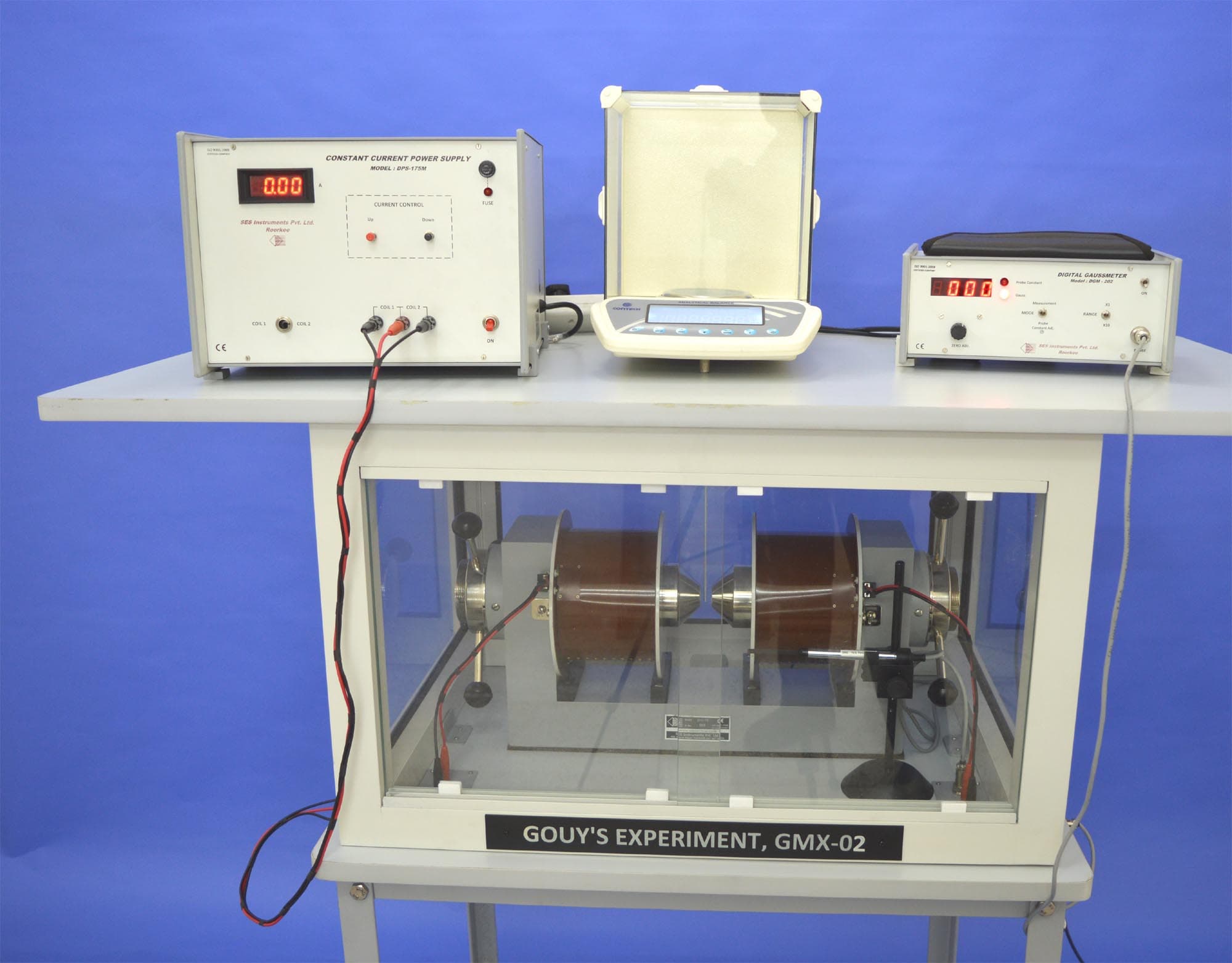

Apparatus for the Measurement of Susceptibility of Solids by Gouy’s (CA-44)
Capacity : 40gms Readability : 0.0001gms Repeatability : (+/-) 0.1mg, Linearity : (+/-) 0.2mg Pan Size : 80mm Standard bidirectional RS-232 interface, Complete with weigh below hook feature suitable for Gouy’s measurements.
Complete with weigh below hook feature suitable for Gouy’s measurements 2. Samples Sample is provided iwth the steup in the form of a long rod: Aluminium sample and Glass Tube. 3. Electromagnet, Model EMU-50T Field Intensity : 9.0KG at 10mm air-gap with tapered pole pieces Pole Pieces : 50mm diameter Energising Coils : Two, each with a resistance of about 3.0W Power Requirement : 0-30Vdc, 4A, if coils are connected in series Weight : 33Kg 4. Constant Current Power Supply, Model DPS-50 Current Range : Smoothly adjustable from 0-4A Load Regulation : 0.1% for load variation from 0 to max. Line Regulation : 0.1% for ±110% mains variation Display : 3½ digit, 7 segment LED DPM Power : 220V ±10%, 50Hz 5.
Technical data
- Model
- sku-63
- Manufacturer
- SVS Labs
- Capacity
- 40gms
- Readability
- 0.0001gms
- Repeatability
- (+/-) 0.1mg
- Linearity
- (+/-) 0.2mg
- Pan Size
- 80mm
- Field Intensity
- 9.0KG at 10mm air-gap with
- Pole Pieces
- 50mm diameter
- Energising Coils
- Two, each with a resistance
- Power Requirement
- 0-30Vdc, 4A, if coils are
- Weight
- 33Kg
- Used in physics and electronics laboratories for apparatus for the measurement of susceptibility of solids by gouy’s-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Capacity : 40gms Readability : 0.0001gms Repeatability : (+/-) 0.1mg
- Linearity : (+/-) 0.2mg Pan Size : 80mm Standard bidirectional RS-232 interface
- Complete with weigh below hook feature suitable for Gouy’s measurements
- 2. Samples Sample is provided iwth the steup in the form of a long rod:
