Model GMX-02

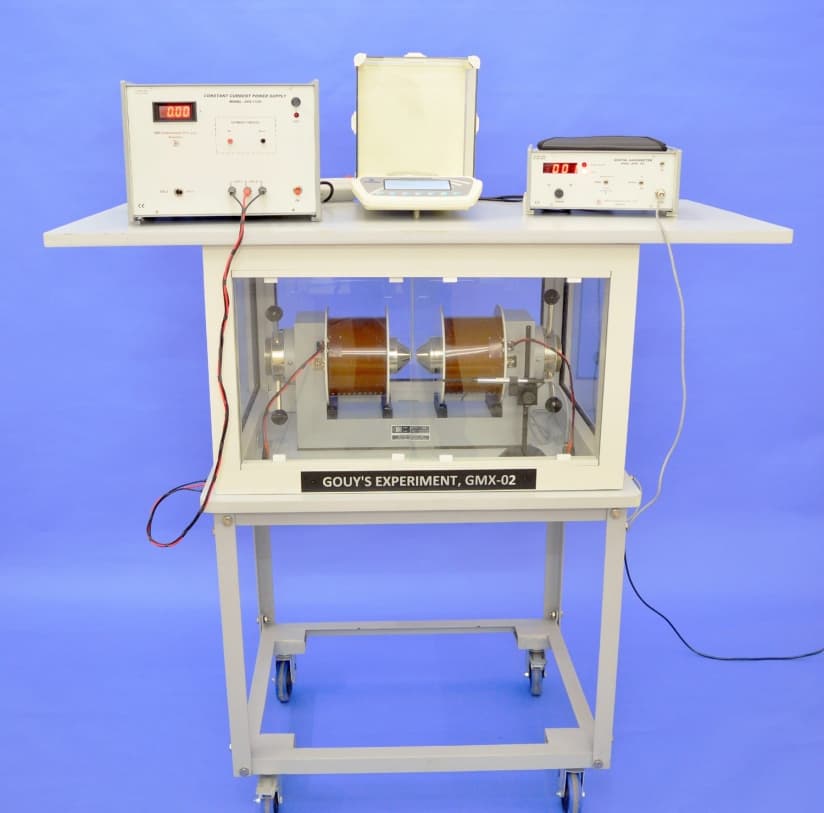

Apparatus for the Measurement of Susceptibility of Solids by Gouy’s (GMX-02)
High accuracy and stability, Bench-top form factor, Designed for educational and research use.
Model GMX-02
01 / 04
Overview
of the magnet (field H ) and the other one is outside the field. The force exerted on the sample by the inhomogeneous magnetic field is obtained by measuring the apparent change ( Dm ) in the mass of the sample. The susceptibility c is given by c= 2Dmg/AH2 If the sample is in the form of powder, it is filled in a long nonmagnetic tube which is then suspended from the pan of the balance.
Specifications
Technical data
- Model
- sku-64
- Manufacturer
- SVS Labs
- Capacity
- 40gms
- Readability
- 0.0001gms
- Repeatability
- (+/-) 0.1mg
- Linearity
- (+/-) 0.2mg
- Pan Size
- 80mm
- Pole Pieces
- 75mm tappered to 25mm
- Mag. Field
- 20KG mm airgap
- Energising Coils
- Two of approx. 13W each
- Power
- 0-90Vdc, 3A, for coils in series
Applications
- Used in physics and electronics laboratories for apparatus for the measurement of susceptibility of solids by gouy’s-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
Features
- High accuracy and stability
- Bench-top form factor
- Designed for educational and research use
