DDS Function Generator (JDS-6600)

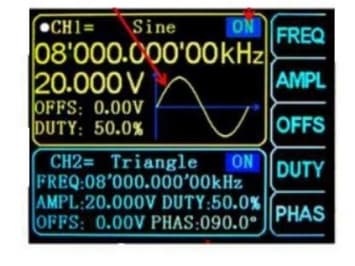

2.4” Color TFT display Precise stable, low distortion output, Dual channel output Storage Feature Counter function USB Insterface, Aritary waveform editing function 60M.
JDS6600 is a dual-channel high precision multifunctional signal generator. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and high precision oscillator, which make the signals highly stable. It contains two independent dual-channel DDS signal and TTL level output and is capable of generating sine/triangle/square/sawtooth/pulse wave, white noise, etc. This is a multifunction instrument capable of generating signal, scanning waveform and measuring various electrical parameters. With frequency range of upto 60MHz, it has built-in functions including amplitude modulation and frequency sweep function etc. Output signal amplitude and frequency are continuously displayed.
Technical data
- Model
- JDS-6600
- Manufacturer
- SVS Labs
- Sine frequency range
- 60MHz
- Square/Triangle frequency range
- 60MHz
- Pulse frequency range
- 6MHz
- Square rise time
- 25nS
- Waveform
- Sine, Square, Triangle, Pulse), Partial Sine, DC level, Half-wave,
- Waveform length
- 2048 points
- Waveform sampling rate
- 266 MSamples/s
- Waveform vertical resolution
- 14 bits
- Frequency meter function
- 1Hz-100MHz
- Counter function
- 0-4294967295 counts
- Used in physics and electronics laboratories for dds function generator-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- 2.4” Color TFT display Precise stable, low distortion output
- Dual channel output Storage Feature Counter function USB Insterface
- Aritary waveform editing function 60M
