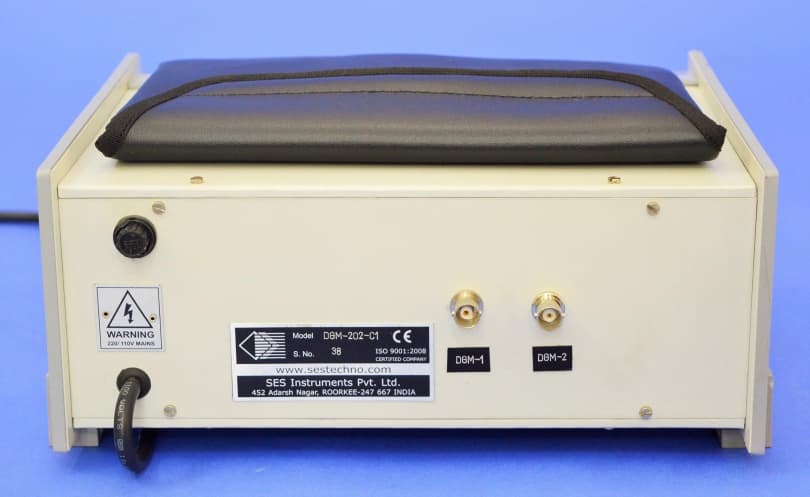

Digital Gaussmeter (DGM-202 + DGM-202-C1)
Wide range (1G to 20KG) Excellent linearity Excellent stability, Interchangeable Hall probes.
DGM-202 operates on the principle of Hall Effect in Semiconductors. A semiconductor carrying current develops an electromotive force, when placed in a magnetic field, in a direction perpendicular to the direction of both electric current and magnetic field. The magnitude of this e.m.f. is proportional to the field intensity if the current is kept constant. This e.m.f. is called the Hall Voltage. The small Hall Voltage is amplified through a high stability amplifier so that a millivoltmeter connected at the output of the amplifier can be calibrated directly in magnetic field unit (gauss).
Technical data
- Model
- DGM-202/DGM-202-C1
- Manufacturer
- SVS Labs
- Display
- 3½ digit, 7 segment LED DPM with auto
- Power
- 220V ±10%, 50Hz
- Transducer
- Hall Probe-GaAs
- Software
- DACC and CAMM, both Window compatible
- Useful in making this model compatible with computerized versions of complete experiments from our company.
- Wide range (1G to 20KG) Excellent linearity Excellent stability
- Interchangeable Hall probes
