Diode Characteristics & Boltzman Constant (DCBC-01)
• Forward and reverse characteristics of Ge, Si diodes and LEDs, The experimental set-up consists of the following: CRO Display, 1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener.

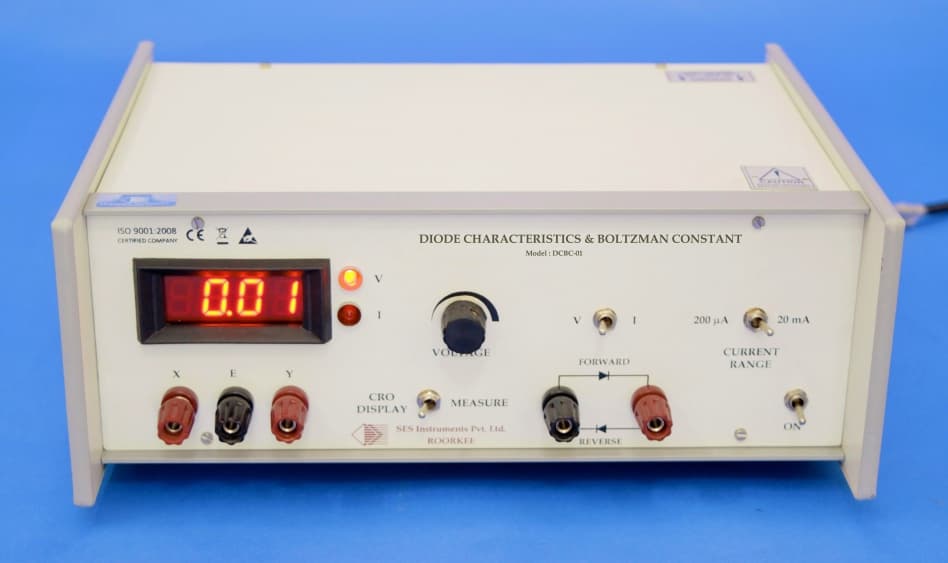

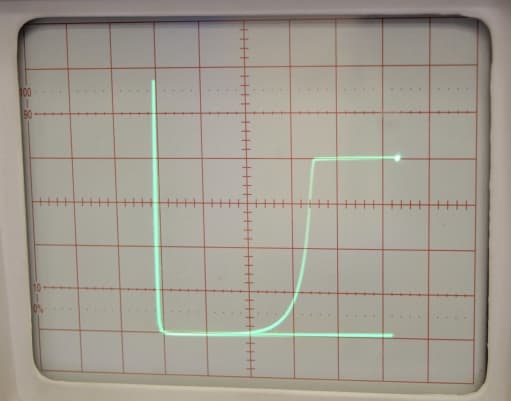

experiments that may be performed with it. The experimental set-up consists of the following: CRO Display 1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener 4.7V, LED and transistor BC-109 2. 3½ digit DPM which can measure diode voltage and current through op-amp circuit. This provides near ideal measurements. 3. Circuit to display forward/reverse characteristics of the diodes on a double trace CRO. 4. IC regulated internal power supplies The experimental set-up is complete in all respect, except a measuring CRO. Graph
Technical data
- Model
- DCBC-01
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for diode characteristics & boltzman constant-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- • Forward and reverse characteristics of Ge, Si diodes and LEDs
- The experimental set-up consists of the following: CRO Display
- 1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener
