Model EMU-75

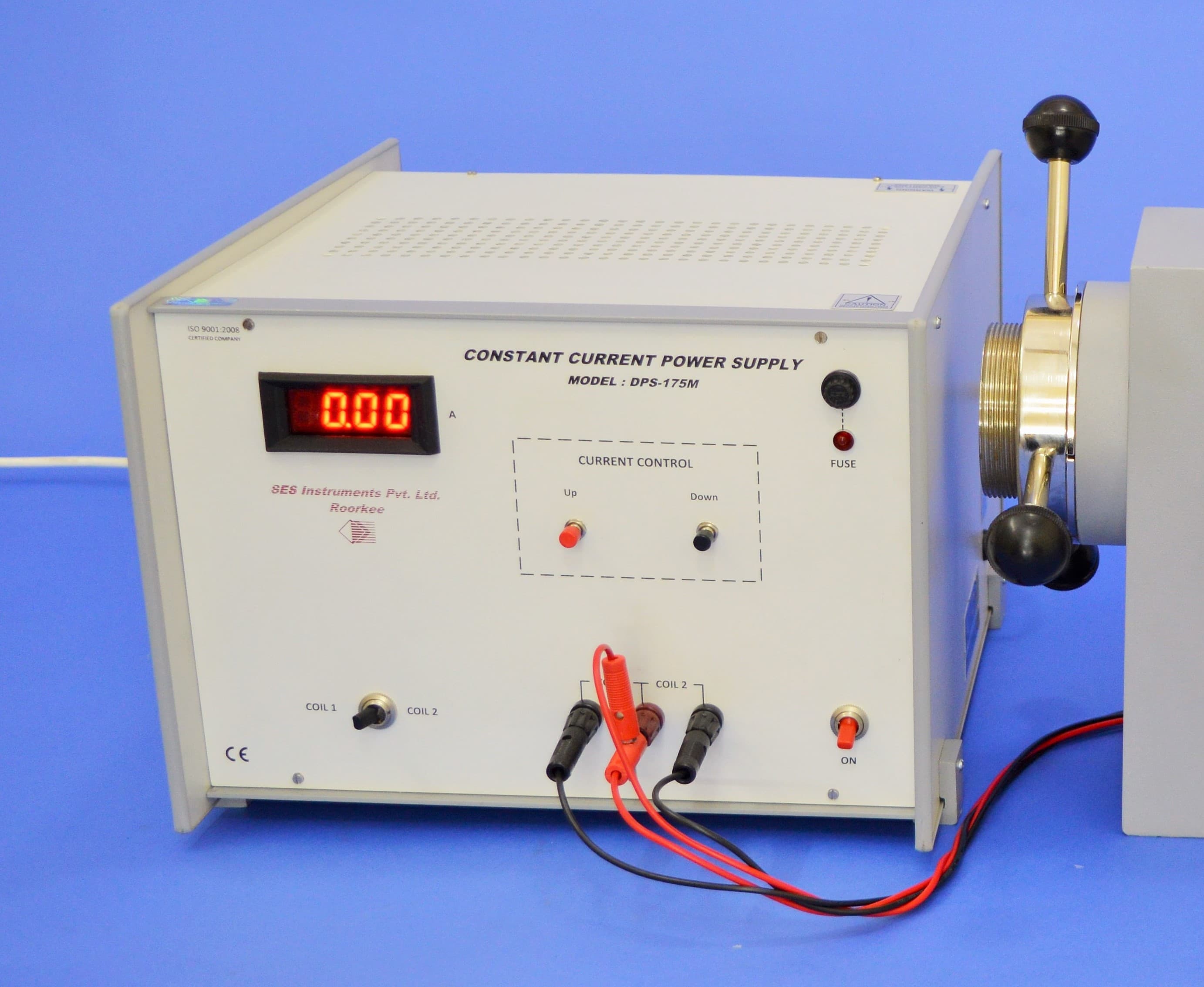

Electromagnet & Power Supply (EMU-75 + DPS-175M)
Specifications Field Intensity 11KG at 10mm air-gap with flat pole pieces.
Model EMU-75
01 / 04
Overview
The coils are wound on non-magnetic formers with uniform layers of S.E. copper wire. The new and modern design of the coils provides good thermal conductivity characteristics and eliminates troublesome hot spots even at high magnetic fields.
Specifications
Technical data
- Model
- EMU-75/DPS-175M
- Manufacturer
- SVS Labs
- Current Range
- Up/ Down switch operated, 0-3A per coil, i.e. 6A
- Load Regulation
- 0.1% for load variation from 0 to max.
- Line Regulation
- 0.1% for ±10% mains variation
- Display
- 3½ digit, 7 segment LED DPM
- Power
- 220V ±10%, 50Hz
- Weight
- 13Kg
- Dimensions
- 340mm X 350mm X 235mm
Applications
- Used in physics and electronics laboratories for electromagnet & power supply-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
Features
- Specifications Field Intensity 11KG at 10mm air-gap with flat pole pieces
