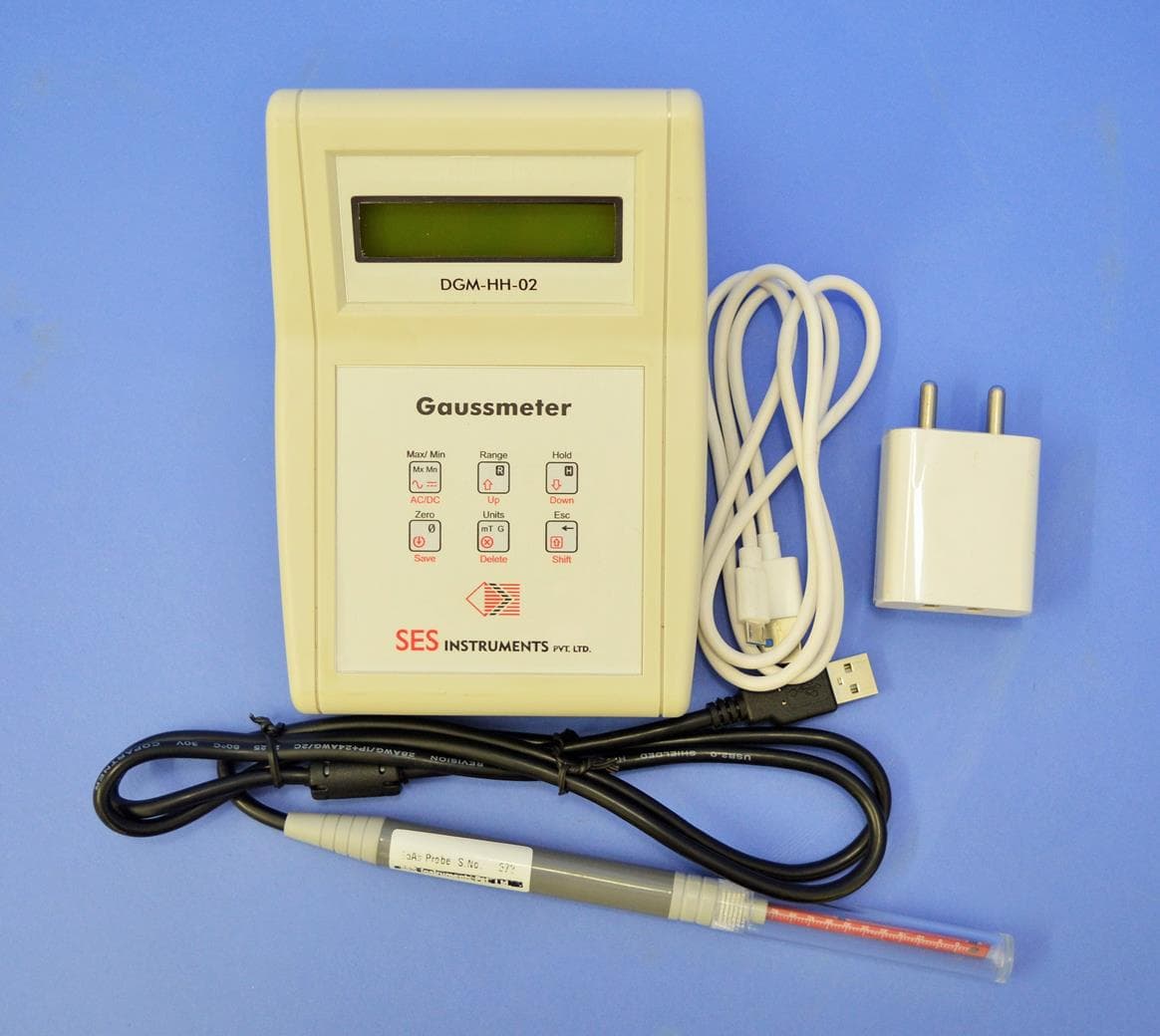

Hand Held Gaussmeter (DGM-HH-02)
20 data storage location Self calibration of Hall Probe.
DGM-HH-02 operates on the principle of Hall Effect in semiconductors. A semiconductor carrying current develops an electromotive force when placed in a magnetic field. The direction of this emf is perpendicular to both the electric current and the magnetic field directions. Also this emf, called hall voltage, is proportional to the intensity of the magnetic field if the current is kept constant. The small Hall Voltage is amplified in the unit by highly stable amplifiers so that its value could be read on an 16x2 LCD. The complete unit operates from a 3200mAH Li-ion battery pack, ensuring 7-8 hrs of continuous operation. Charging cable comes with the unit.
Technical data
- Model
- DGM-HH-02
- Manufacturer
- SVS Labs
- 1G at 2KG range & 10G at 20KG/ 40KG range 2KG, 20KG Gauss (G), millTesla (mT) DC/ AC magnetic fields Selectable Range, Max/Min Hold.
- Upto 20 data sample storage ±0.5% ±½ digit Upto 60°C (typical) (Sensor temperature can go higher) Display 16x2 digit, backlit LCD.
- Li-ion 3200mAH in-built chargeable battery Transducer Hall Probe – GaAs (Included).
- 20 data storage location Self calibration of Hall Probe
