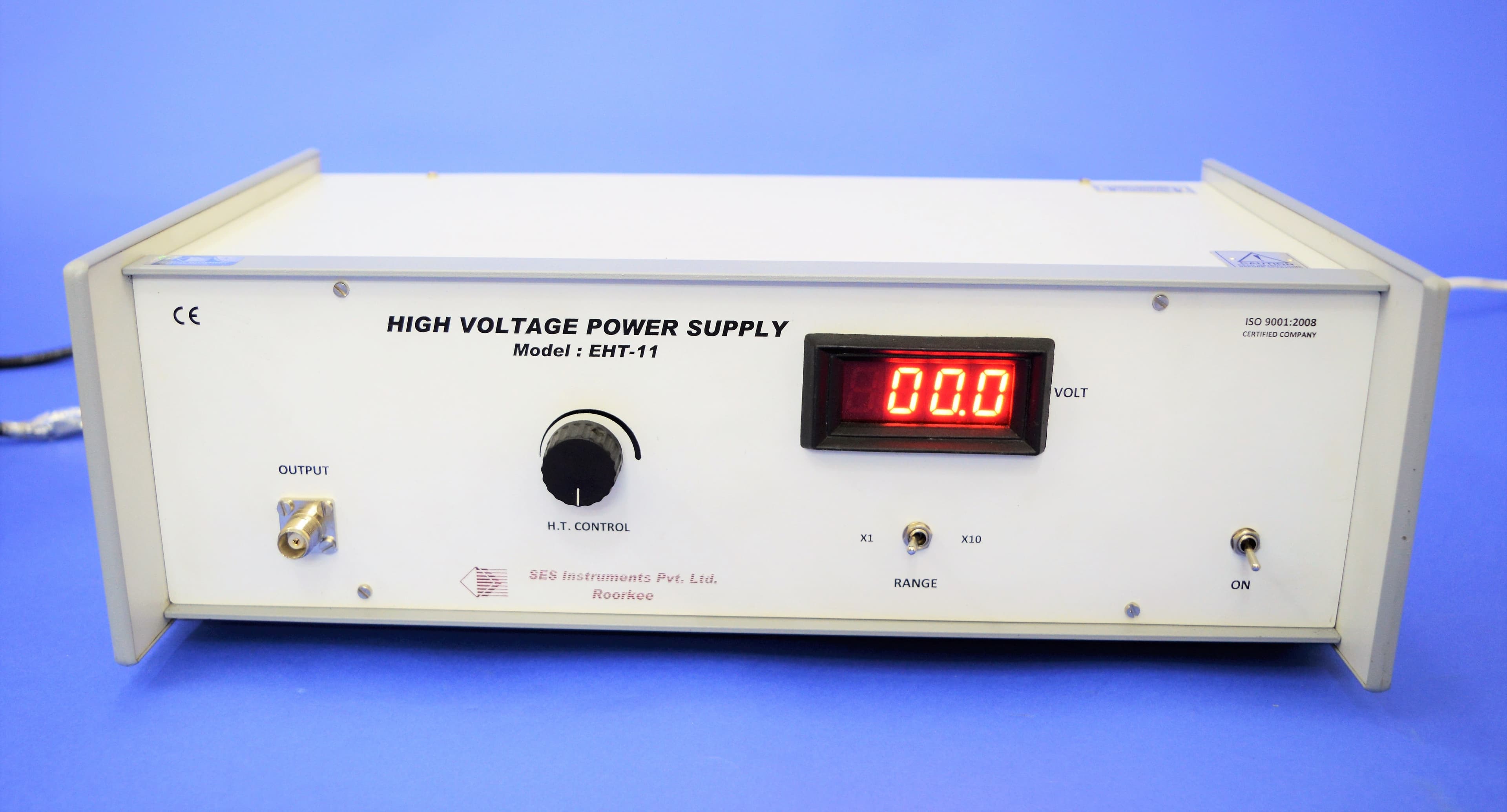

High Voltage Power Supply (EHT-11 + EHT-11-C1)
Continuously variable Electronically regulated Fully solid state circuit, Low power consumption Computer connectivity through SES-CAMM.
Power supply, EHT 11 principle of operation is entirely different from conventional supplies, and thereby eliminating many drawbacks; bulky high voltage transformer, need of high voltage components and excessive heating of components etc., associated with them. This power supply consists of a stable power oscillator whose output is controlled by an input signal. The output of this oscillator is boosted with the help of a step-up transformer and then rectified and filtered. A portion of this output is compared with a high stability, temperature compensated reference and the error signal is used in the feedback path to control the oscillator s output. There is a builtin protection against accidental overloading.
Technical data
- Model
- EHT-11/EHT-11-C1
- Manufacturer
- SVS Labs
- Polarity
- +ve or -ve, as required
- Interfacing
- Through SES-CAMM module (In EHT-11-
- Power requirements
- 220V ±10%, 50Hz
- Dimensions
- 240mm X 390mm X 130mm
- Used in physics and electronics laboratories for high voltage power supply-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Continuously variable Electronically regulated Fully solid state circuit
- Low power consumption Computer connectivity through SES-CAMM
