Study of a Solid State Power Supply (SSPS-02)
Features 1. Study of rectification (a) Full wave rectification, (a) Efficiency of various type of filters L, p, T type etc, (a) The effect of load on regulation (b) The effect of change in main’s voltage.

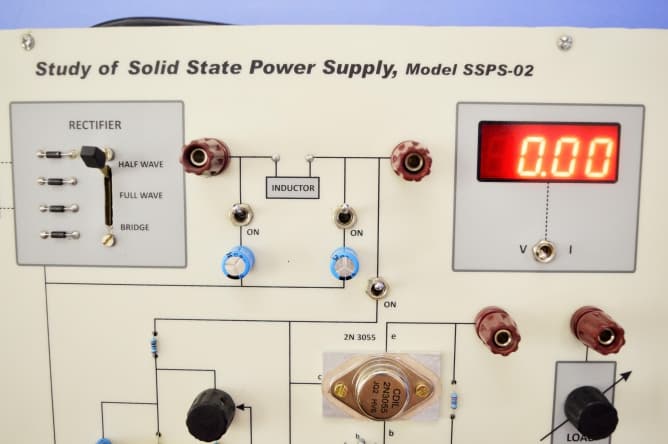

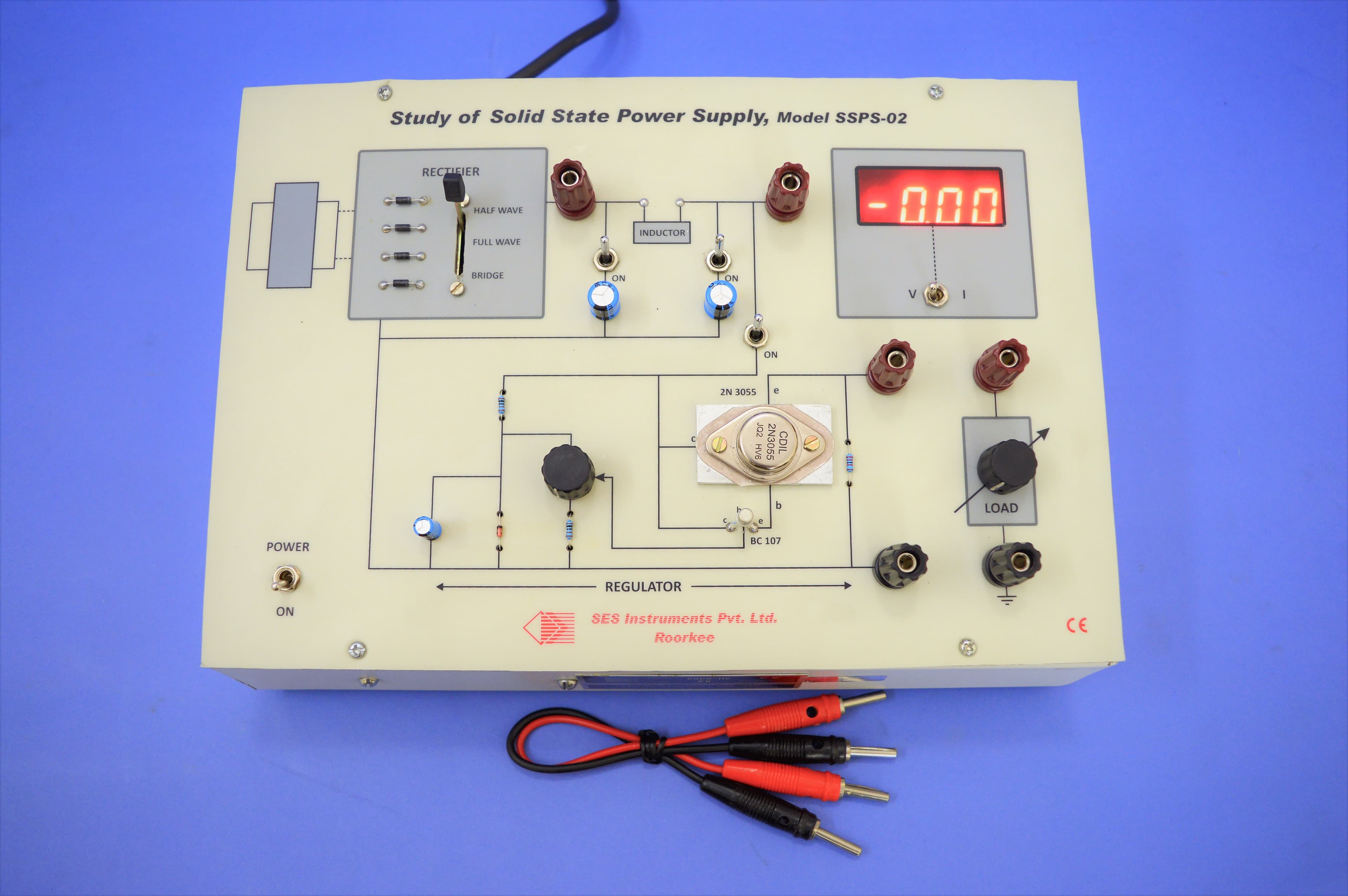

The Set-up consists of a step-down transformer, a rectifier circuit (can be used as a half-wave or a full-wave rectifier), a filter circuit (an inductance and two capacitors) - the arrangement can be used for the study of various configuration of filters and a regulator circuit. A built-in electronic load is used to smoothly vary the load current while a digital panel meter on the board measures the load current and load voltage.
Technical data
- Model
- SSPS-02
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of a solid state power supply-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Features 1. Study of rectification (a) Full wave rectification
- (a) Efficiency of various type of filters L, p, T type etc.
- (a) The effect of load on regulation (b) The effect of change in main’s voltage
