Study of a Transistor Amplifier (RC Coupled) Cum-Feed Back Amplifier (RC-01)
Features 1. Study of the basic circuit of a RC coupled Amplifier, 6. Study of different classes of amplifier.

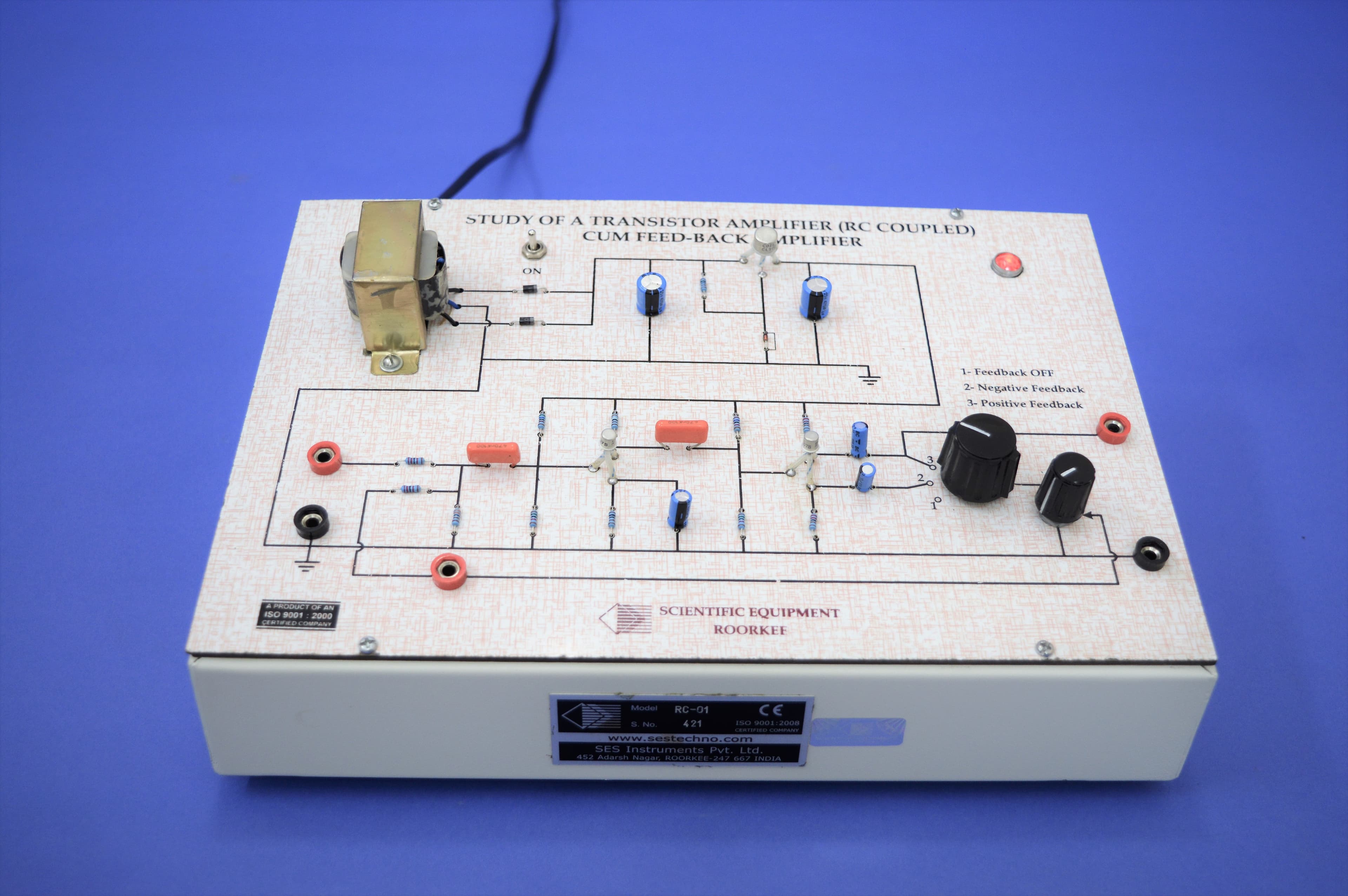

This is a two stage transistor amplifier with a provision for positive and negative feedback. The amount of feedback is adjustable and with the help of this it is even possible to make the amplifier oscillate. A 9V stabilized power is provided on the same board. The experimental set-up has been laid down on a decorated bakelite board with an aim of providing an easy understanding to the students. All components are well spread out for clarity and easy repairs and replacement. The set-up is provided with a booklet, which contains its detailed theory of operation, Measuring/testing instruments required description, specifications, suggestions and discussion on the 1. A.C. Millivoltmeter (True R.M.S. A.C. Millivoltmeter, various experiments that may be performed with it. Model: ACM-102)
Technical data
- Model
- RC-01
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of a transistor amplifier (rc coupled) cum-feed back amplifier-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Features 1. Study of the basic circuit of a RC coupled Amplifier
- 6. Study of different classes of amplifier
Lock in a quote for Study of a Transistor Amplifier (RC Coupled) Cum-Feed Back Amplifier (RC-01).
Fill the form — we’ll respond with a proforma invoice, INCOTERMS variations and lead-time within one business day.
