Study of an Integrated Circuit Regulator (723)
High accuracy and stability, Bench-top form factor, Designed for educational and research use.

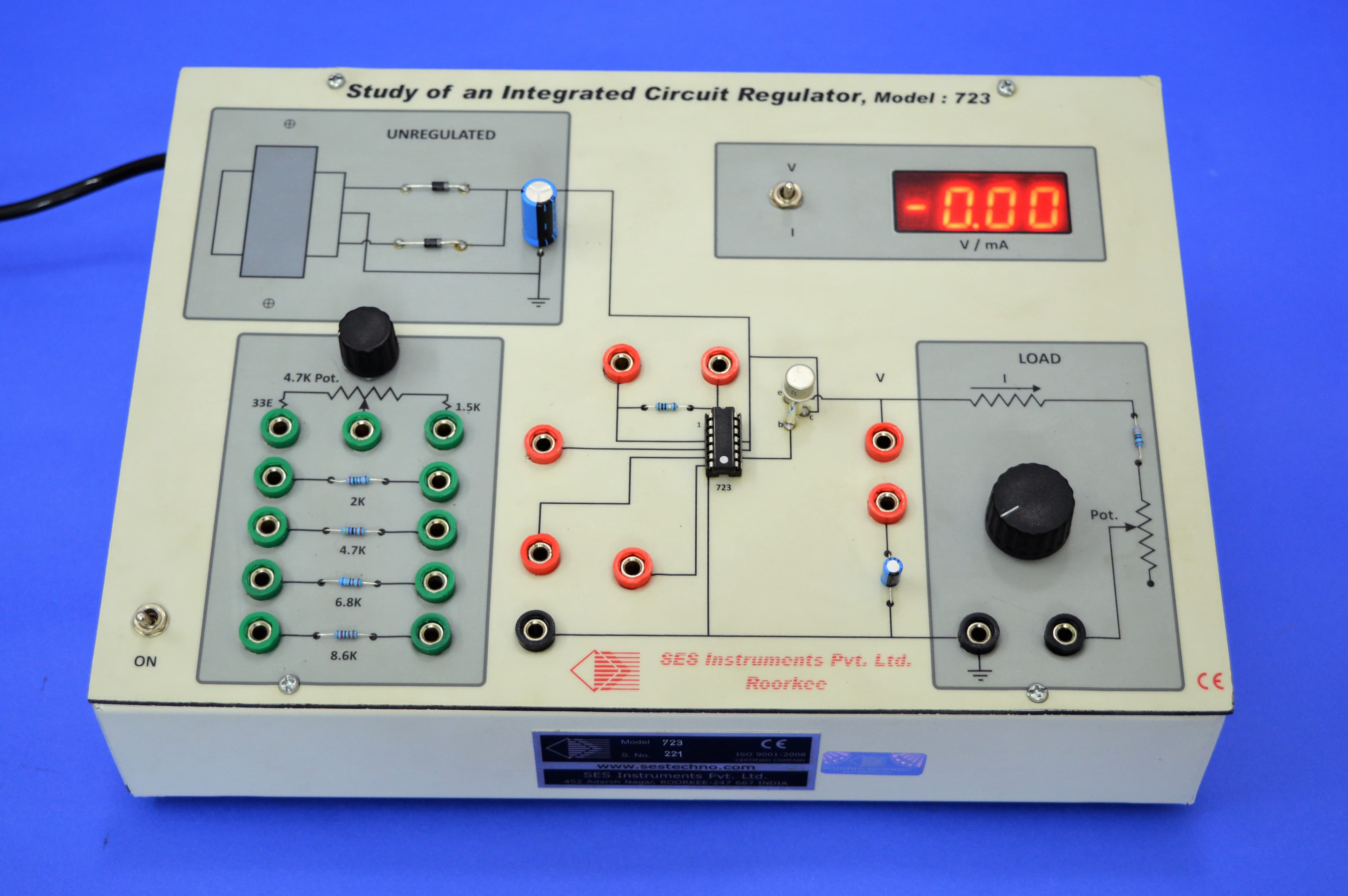

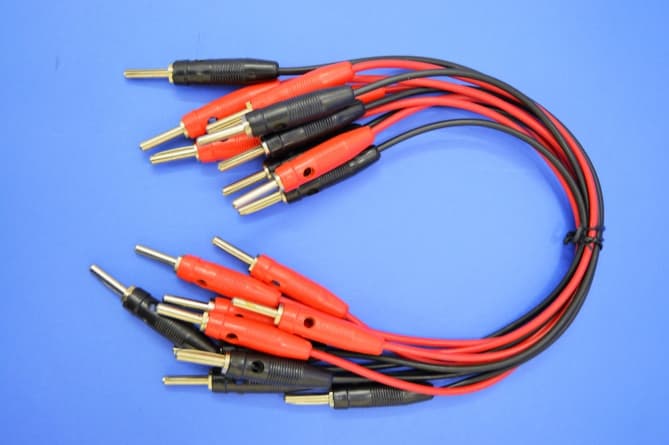

The 723 is a monolithic precision voltage regulator constructed on a single silicon chip. The device consists of a temperature compensated reference, error amplifier, power series pass transistor and current limit circuitry. Some of its important features - adjustable output voltage from 2 to 37V, of either polarity, 0.01% line and 0.03% load regulation, output current upto 150mA without external pass transistor make it a general purpose IC for voltage or current regulation. The experimental set-up consists of an IC 723 with facilities for convenient connections, an unregulated power supply, voltmeter, an ammeter and all the other components resistances, potentiometers, variable load etc. required to perform the experiments. The set-up is complete in all respect including patch cords.
Technical data
- Model
- 723
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of an integrated circuit regulator-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- High accuracy and stability
- Bench-top form factor
- Designed for educational and research use
