Study of Astable & Monostable Multivibrators using Timer IC (555)
Study Of Astable & Monostable Multivibrators Using Timer Ic: 555.

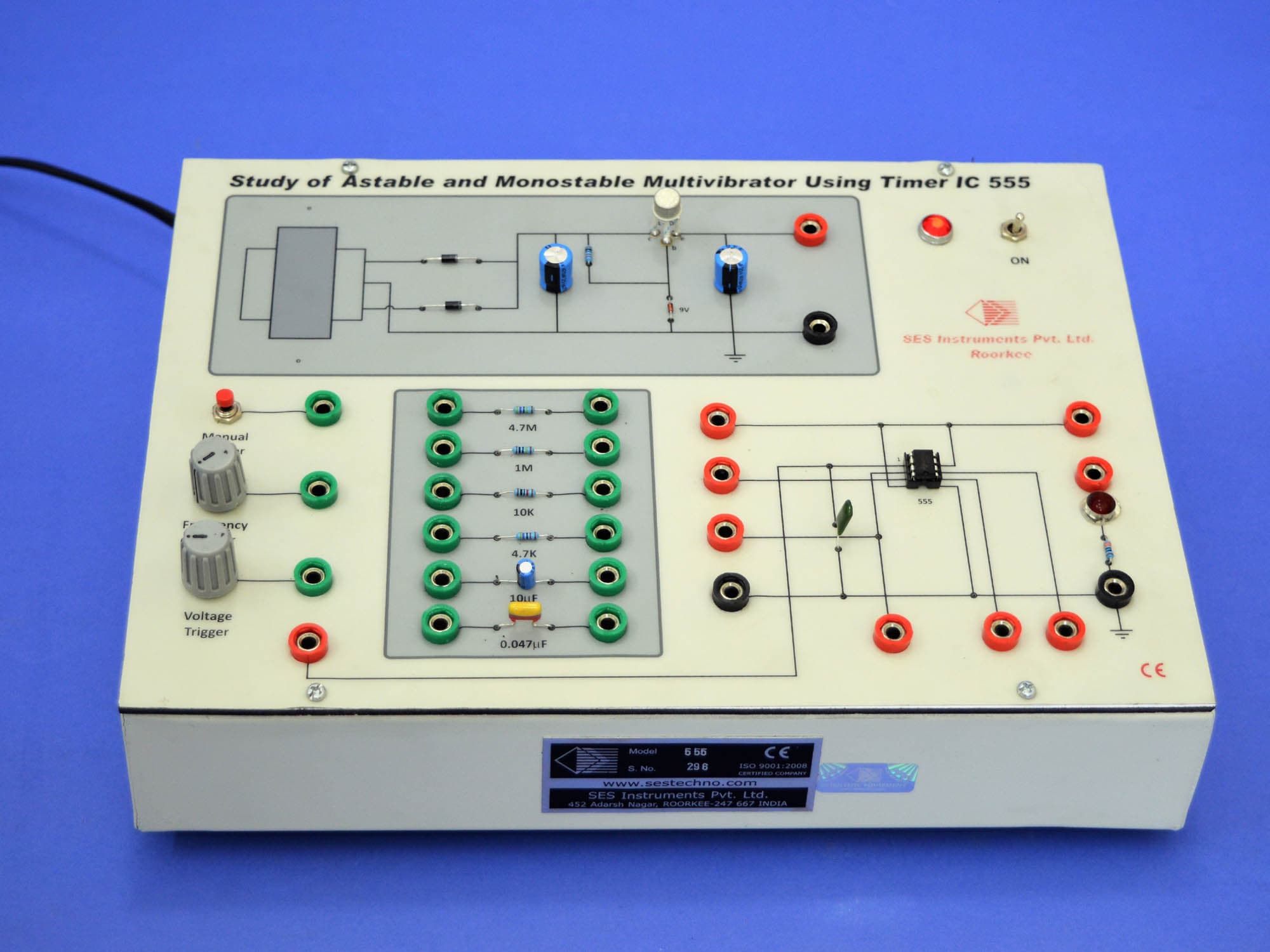

555 timer is a highly stable integrated circuit capable of functioning as an accurate time-delay generator and as an astable multivibrator or free running multivibrator. When used as an oscillator the frequency and duty cycle are accurately controlled by only two external resistors and a capacitor. Some of its important features are timing from micro-seconds through hours, monostable and astable operation, trigger and reset inputs are logic compatible, and output compatible with CMOS, DTL and TTL (when used with 5V supply). The set-up consists of 555 IC with facilities for convenient connection at the board, a power supply, built-in facilities for various type of triggers-variable frequency, variable voltage, and manual. The resistors and capacitors required are mounted on the board.
Technical data
- Model
- 555
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of astable & monostable multivibrators using timer ic-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Study Of Astable & Monostable Multivibrators Using Timer Ic: 555
