Model sku-73

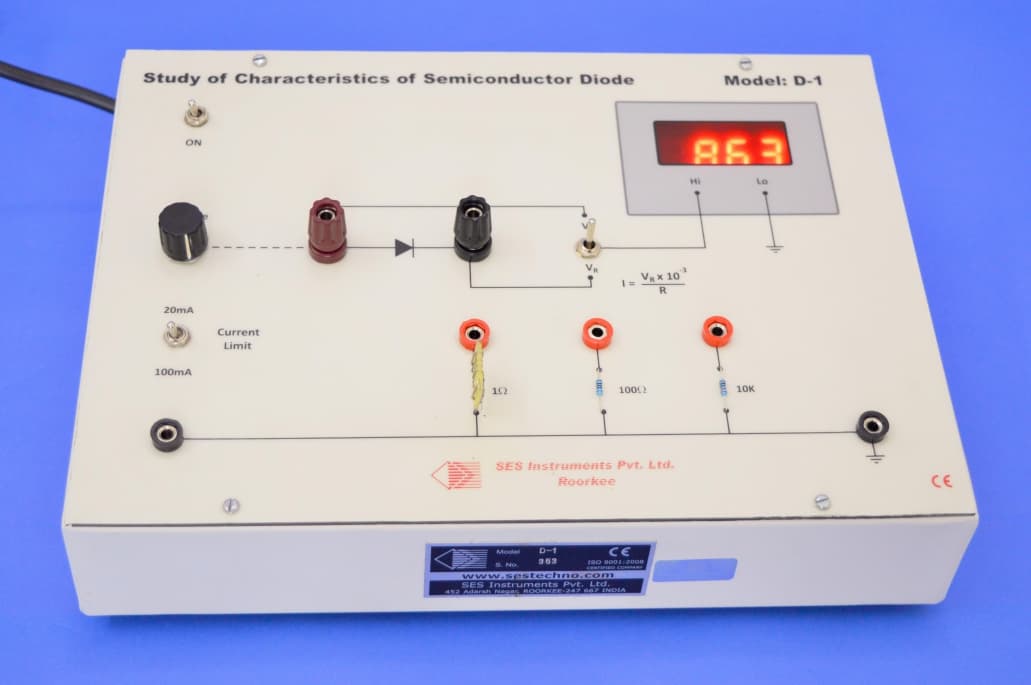

Study of Characteristics of Semiconductors Diodes Si (Ge: Zener + LED: D-1)
Features • Forward and reverse characteristics of Ge, Si diodes and, The experimental set-up consists of the following 1.
Model sku-73
01 / 04
Overview
experiments that may be performed with it. The experimental set-up consists of the following 1. 2. 3. 4. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener 5.1V and LED 3½ digit DPM which can measure voltage (0-20V) Suitable precision resistances are provided for the measurement of forward current, Reverse current, in the range of 10nA to 200mA IC regulated variable power supply (0-12V) The experimental set-up is complete in all respect.
Specifications
Technical data
- Model
- sku-73
- Manufacturer
- SVS Labs
Applications
- Used in physics and electronics laboratories for study of characteristics of semiconductors diodes si-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
Features
- Features • Forward and reverse characteristics of Ge, Si diodes and
- The experimental set-up consists of the following 1.
Quick inquiry
Lock in a quote for Study of Characteristics of Semiconductors Diodes Si (Ge: Zener + LED: D-1).
Fill the form — we’ll respond with a proforma invoice, INCOTERMS variations and lead-time within one business day.
