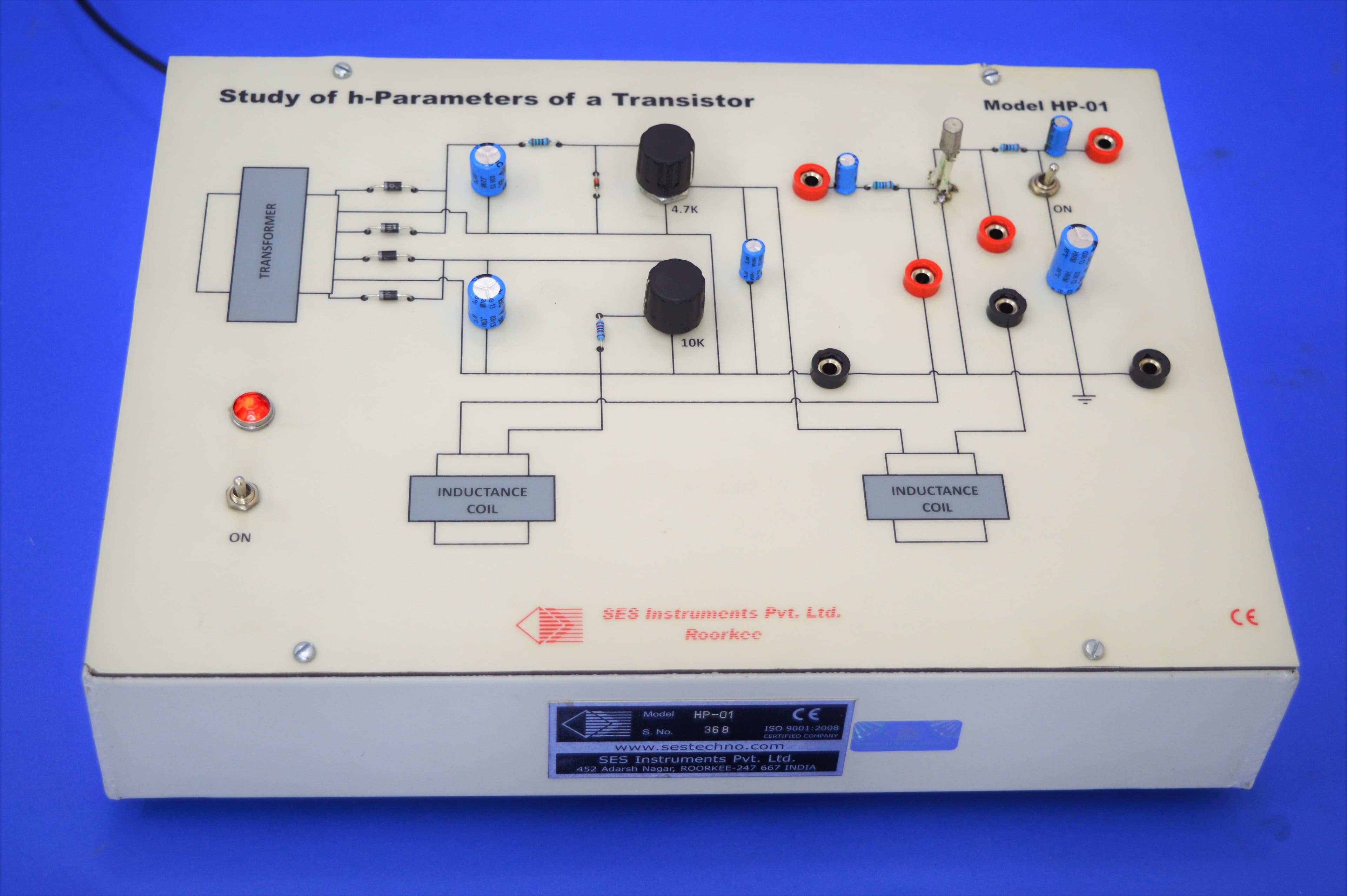

Study of Hybrid Parameters of Transistors (HP-01)
• True R.M.S A.C. Millivoltmeter, Model ACM-102 & Oscillator, • Built-in power supply.
A transistor has low input impedance and high output impedance and hence the use of Z and Y parameters becomes awkward specially at high frequencies. As a result the hybrid of 'h' parameters are found to be most useful for transistor circuit analysis, because the hybrid parameters form a and high impedance of the transistor. Another advantage is that the parameters h11 , h21 and h22 almost correspond to the actual operating conditions. The experimental set-up have been laid down on a decorated bakelite board with an aim of providing an easy understanding to the students. All components are well spread out for clarity and easy repairs and replacement.
Technical data
- Model
- HP-01
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of hybrid parameters of transistors-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- • True R.M.S A.C. Millivoltmeter, Model ACM-102 & Oscillator
- • Built-in power supply
