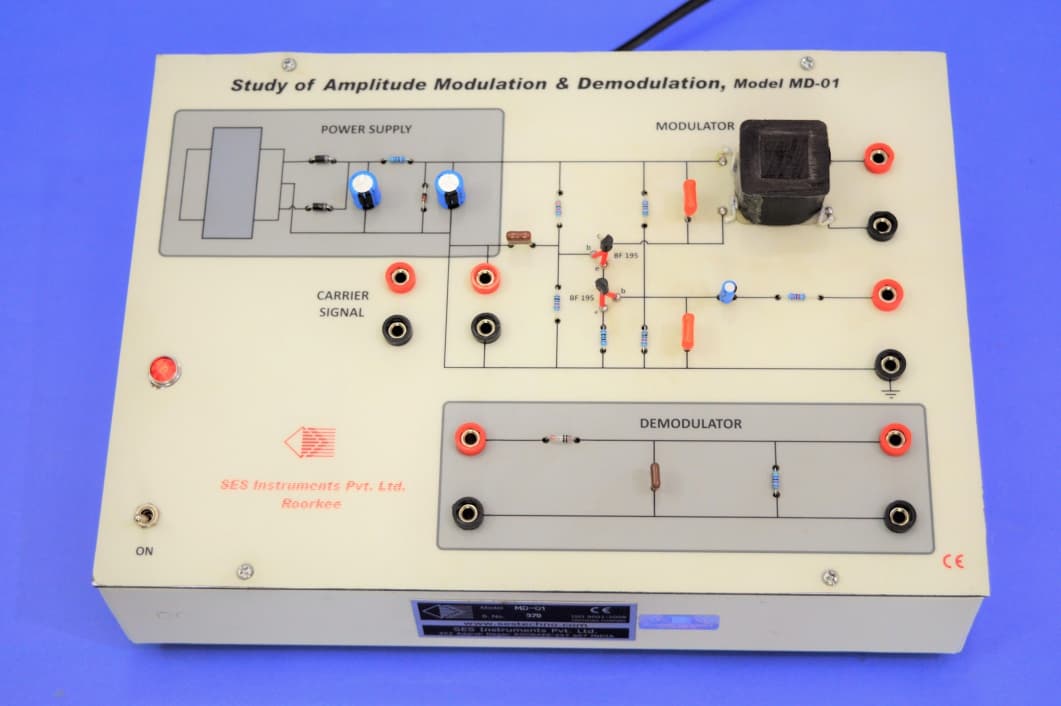

Study of Modulation & Demodulation with Built-in Carrier Frequency (Solid (MD-01)
1. A.F. Oscillator • Study of variation of modulated wave with the, 2. CRO • Study of detector circuit, • Built-in power supply.
The set-up consists of modulating and demodulating circuits. It is provided with a fixed frequency (70 KHz) oscillator, which may be used for carrier frequency. This eliminate the need of a R.F. Oscillator. The carrier signal may be given from any other oscillator also if the change in carrier frequency is desired. Since the circuit is designed for comparatively low frequency (70 KHz to 150 KHz) carrier signal, the usual A.F. Frequency Oscilloscope is good enough. The experimental set-up have been laid-down on a decorated bakelite board with an aim of providing an easy understanding to the students. All components are well spread out for clarity and easy repairs / replacement.
Technical data
- Model
- sku-76
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of modulation & demodulation with built-in carrier frequency (solid-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- 1. A.F. Oscillator • Study of variation of modulated wave with the
- 2. CRO • Study of detector circuit.
- • Built-in power supply
