Study of Multivibrators (MV-01)
Features • • • Study of a Bistable Multivibrator, Study of a Free Running Multivibrator, Study of a Univibrator.

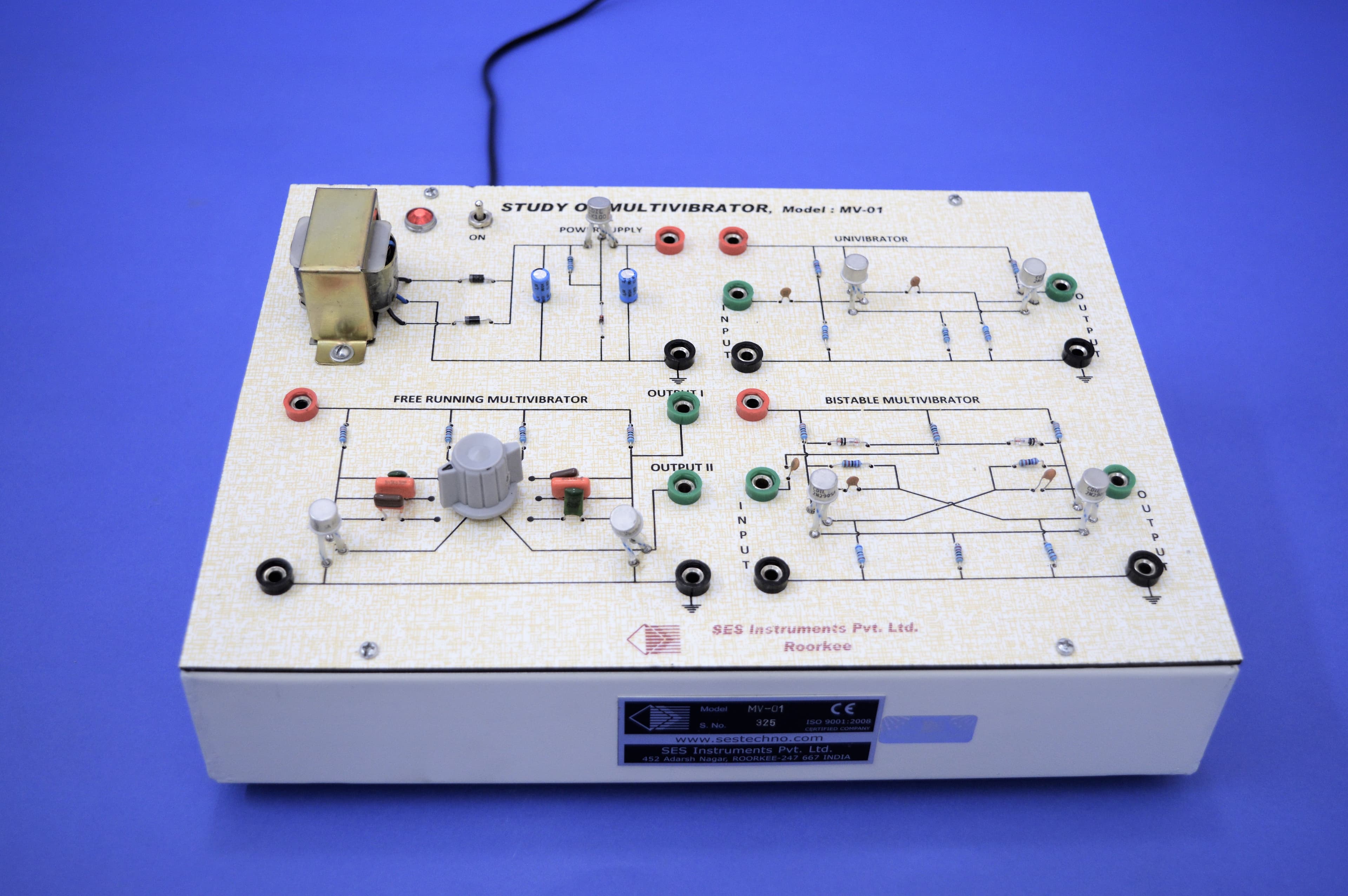

The set-up consists of circuits of three type of multivibrators : (1) Free running multivibrator (2) Bistable multivibrator (3) Univibrator and their stabilized power supply, all mounted on a decorated bakelite board. Usual provisions for convenient inputs and outputs are provided on binding terminals. The experimental set-up have been laid down on a decorated bakelite board with an aim of providing an easy understanding to the students. All components are well spread out for clarity and easy repairs and replacement. The set-up is provided with a booklet, which contains its detailed theory of operation, description, specifications, suggestions and discussion on the various experiments that may be performed with it.
Technical data
- Model
- MV-01
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of multivibrators-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Features • • • Study of a Bistable Multivibrator.
- Study of a Free Running Multivibrator.
- Study of a Univibrator.
- The free running multivibrator also serve as a pulse generator
