Model 741-03

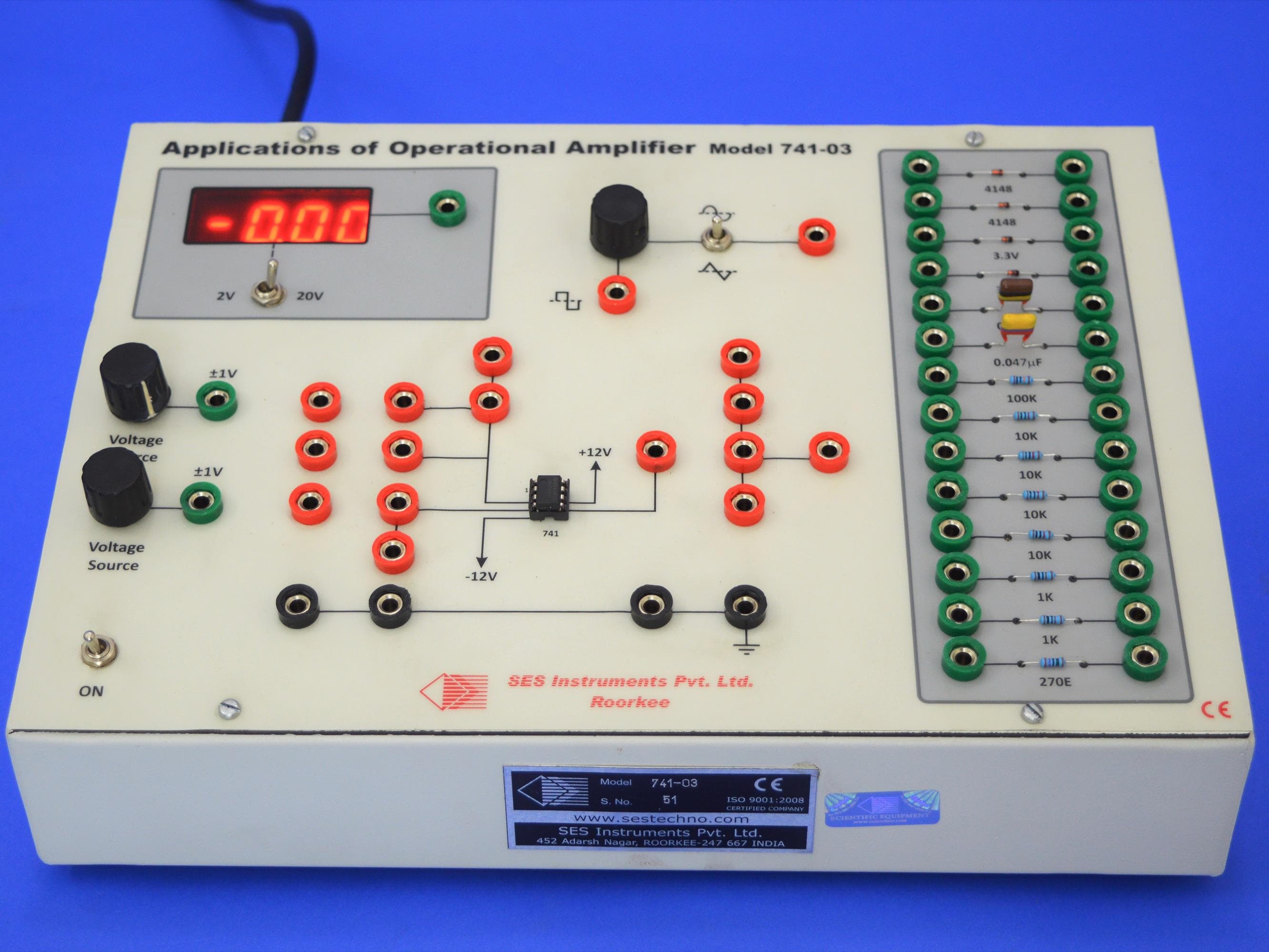

Study of Op Amp 74l Applications (741-03)
Features • Study of linear and non linear applications as Ÿ Integrator, Ÿ V - I converter Ÿ Clipper Ÿ Differentiator Ÿ I - V converter, Ÿ Clamper Ÿ Summer Ÿ Astable Multivibrator Ÿ Peak Detector Ÿ Subtractor.
Model 741-03
01 / 04
Overview
The operational amplifier (Op. Amp.) is a versatile device that can be used to amplify dc as well as ac input signals and was originally designed for such mathematical functions as addition, subtraction, multiplication, and integration. Thus the name operational amplifier stemps from its original use for these mathematical operations. With the addition of suitable external feedback components, the modern day op-
Specifications
Technical data
- Model
- 741-03
- Manufacturer
- SVS Labs
Applications
- Used in physics and electronics laboratories for study of op amp 74l applications-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
Features
- Features • Study of linear and non linear applications as Ÿ Integrator
- Ÿ V - I converter Ÿ Clipper Ÿ Differentiator Ÿ I - V converter
- Ÿ Clamper Ÿ Summer Ÿ Astable Multivibrator Ÿ Peak Detector Ÿ Subtractor
