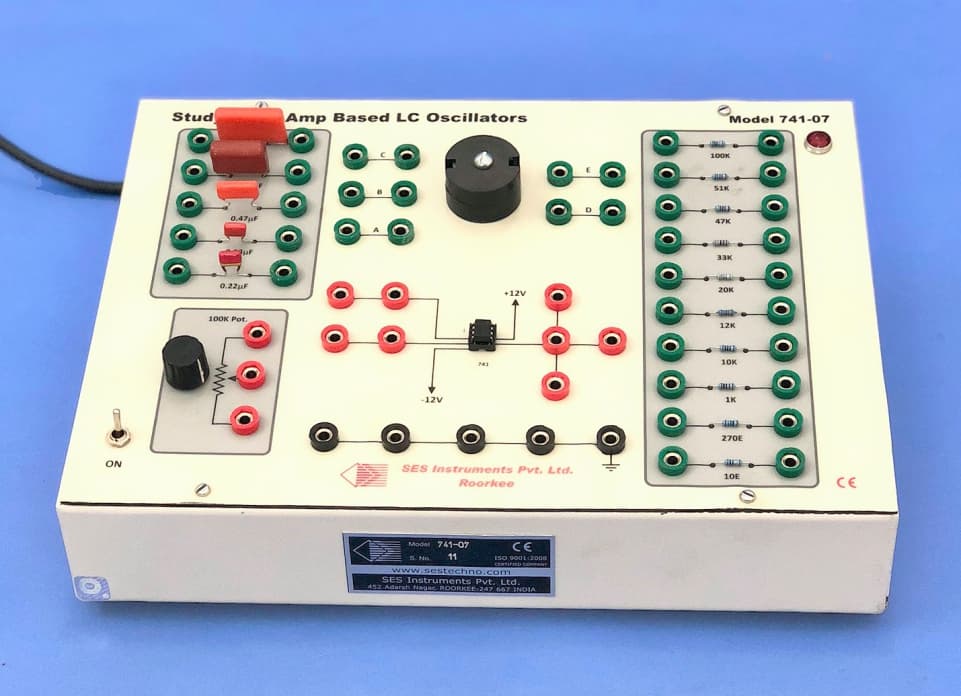

Study of Op Amp Based LC Oscillators (741-07)
Ÿ Hartley Oscillator Ÿ Tuned Output Oscillator Ÿ Colpitts Oscillator, Ÿ Clapps Oscillator Ÿ All necessary components are available on the panel, Ÿ Ÿ Built-in power supply Ÿ.
Sine wave signals at different frequencies find application in the frequency response studies of various electronic circuits and systems. Historically these sine wave signals have been generated using LC tuned circuits and RC circuits, although digitally synthesized signals are now becoming more common. Basic signal generation is therefore an important task that needs to be introduced to a student of electronics at an early stage. Particularly important are the medium to low frequency signals in the audio ranges. Our experimental unit type 741-05 covers RC oscillators while the present unit is designed to explore the operational amplifier based inductance-capacitor type circuits of various kinds in the lower kHz region. The unit has the possibility of a range of
Technical data
- Model
- 741-07
- Manufacturer
- SVS Labs
- Used in physics and electronics laboratories for study of op amp based lc oscillators-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Ÿ Hartley Oscillator Ÿ Tuned Output Oscillator Ÿ Colpitts Oscillator
- Ÿ Clapps Oscillator Ÿ All necessary components are available on the panel
- Ÿ Ÿ Built-in power supply Ÿ
