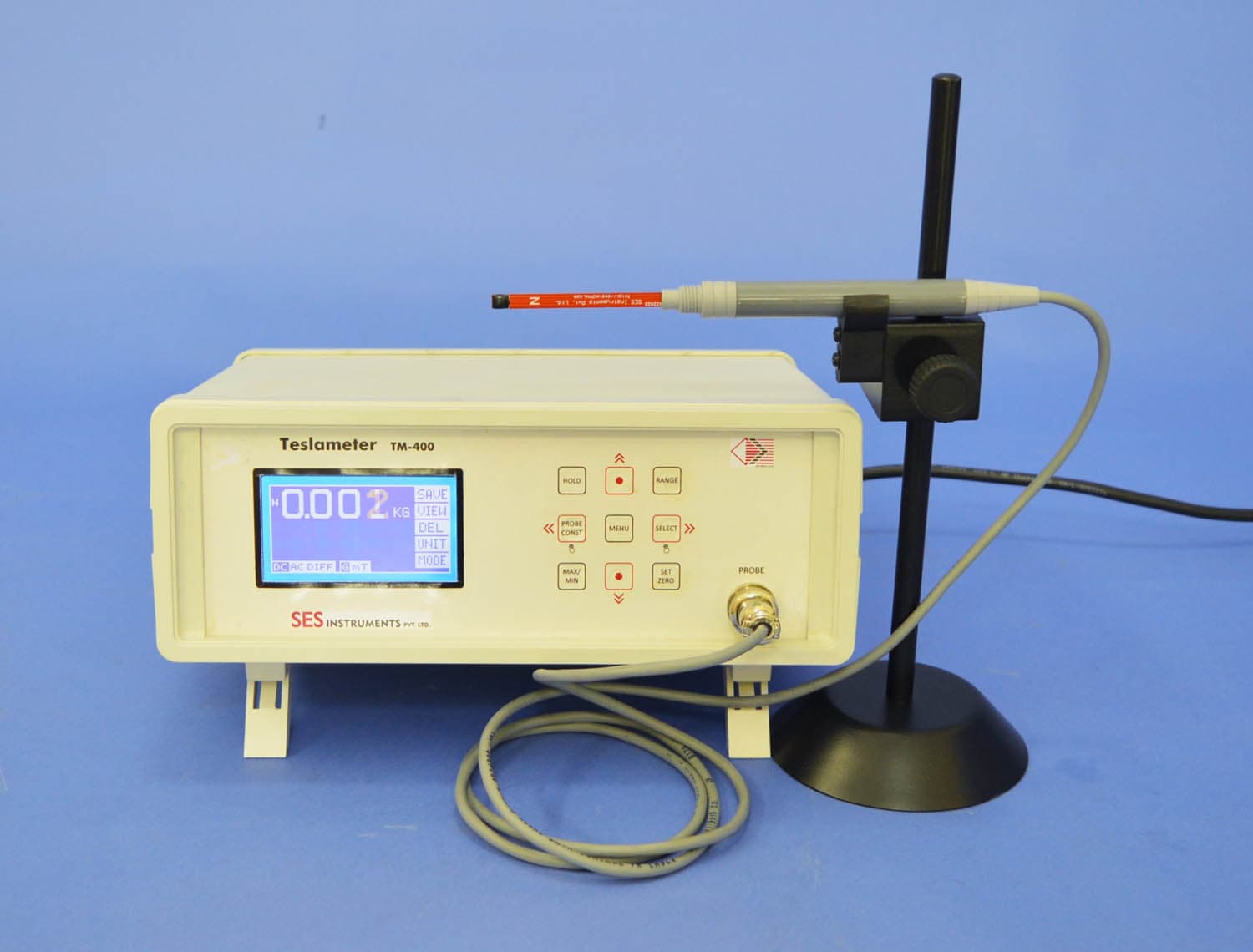

Teslameter (TM-400)
Teslameter/ Gaussmeter AC/ DC field measurements Wide range (0.1G to 40KG), Differential mode Maximum/ Minimum Hold function Built-in computer interface.
TM-400 operates on the principle of Hall Effect in semiconductors. A semiconductor carrying current develops an electromotive force, when placed in a magnetic field in a direction perpendicular to the direction of both electric current and magnetic field. The magnitude of this e.m.f. is proportional to the field intensity if the current is kept constant. This e.m.f. is called the Hall Voltage. This small Hall Voltage is amplified through a high stability amplifier, the output of which is processed through a microncontroller and displayed on a graphical LCD display.
Technical data
- Model
- TM-400
- Manufacturer
- SVS Labs
- Range-1
- 0 to ±4 Tesla (0 to ±40 KiloGauss) Mode: Normal, Differential
- Range-2
- 0 to ±2 Tesla (0 to ±20 KiloGauss) Hold: Maximum, Minimum
- Range-3
- 0 to ±200 milliTesla (0 to ±2 KiloGauss) Refresh Rate: 3 samples per second
- Range-4
- 0 to ±20 milliTesla (0 to ±200 Gauss) Operating Temperature : Upto 40ºC
- Display
- 4 digit dot matrix graphic LCD, with Memory Type: Non Volatile, upto 25 samples
- Units
- Tesla, Gauss Software : DACC and CAMM, both Window
- Functions
- DC, AC (Freq. limited by hall probe) compatible
- Accuracy
- ±0.5% ±1digit Power : 220V ±10%, 50Hz
- Hall Probe
- GaAs, upto 500KHz 110V ±10%, 50Hz (optional)
- Used in physics and electronics laboratories for teslameter-related experiments.
- Suitable for undergraduate teaching, postgraduate coursework, and research projects.
- Compact bench-top design fits standard laboratory benches and demonstration setups.
- Teslameter/ Gaussmeter AC/ DC field measurements Wide range (0.1G to 40KG)
- Differential mode Maximum/ Minimum Hold function Built-in computer interface
